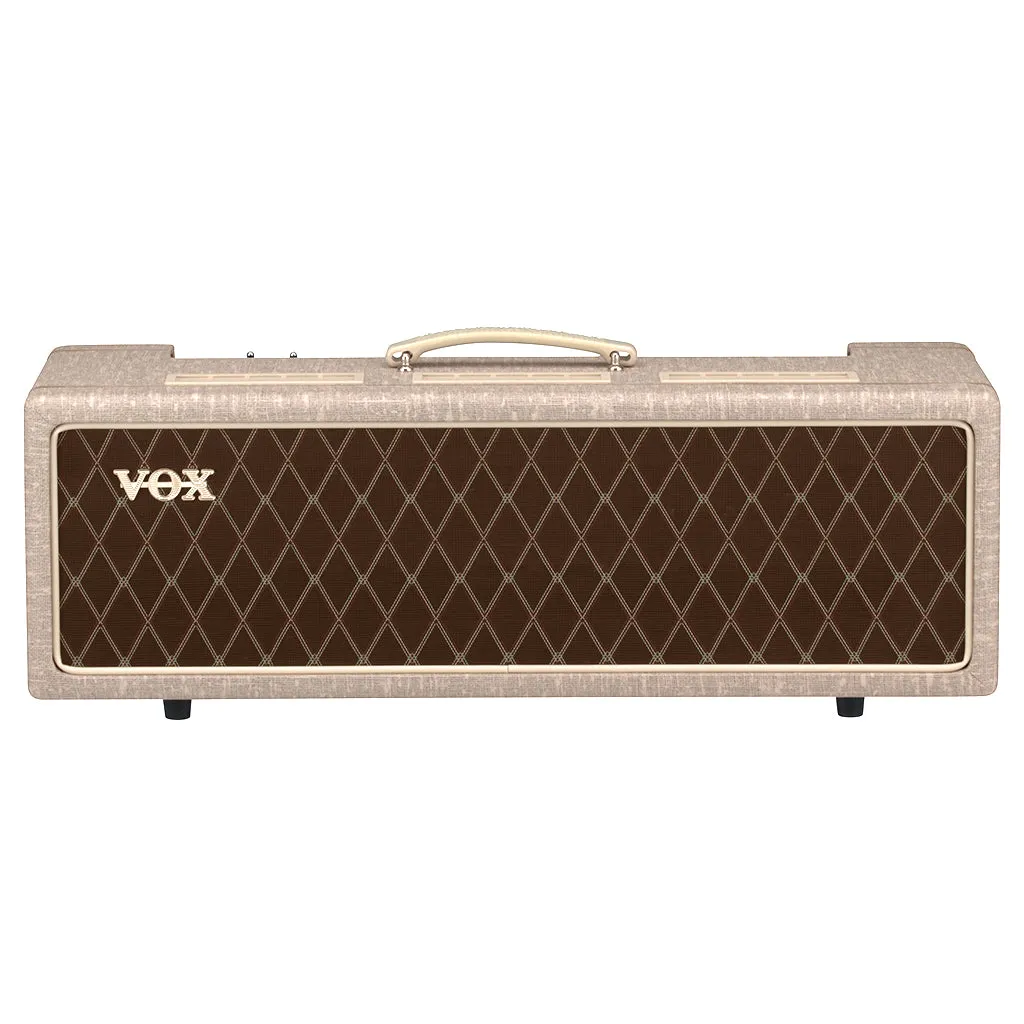

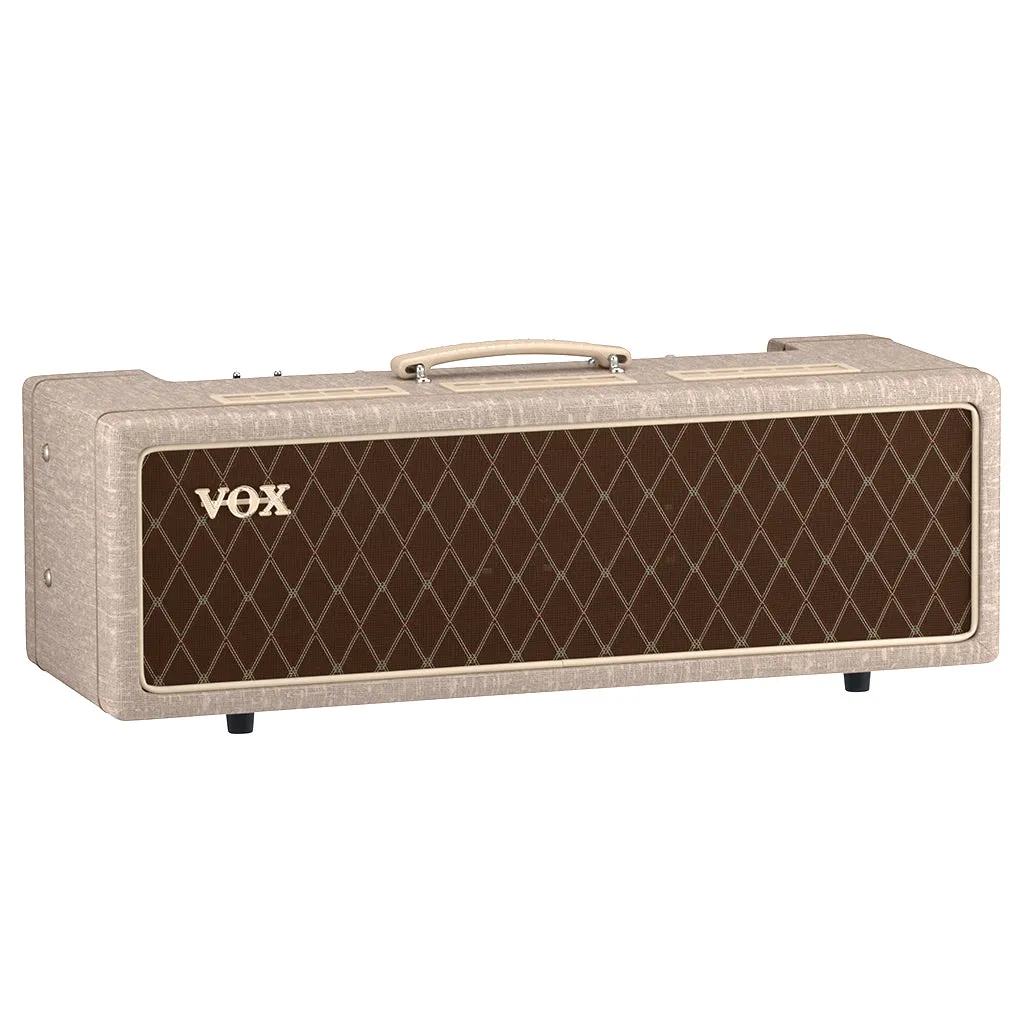

For many years, VOX has been designing and manufacturing some of the most renowned amplifiers in recent history... Today is no exception. VOX introduces the AC30 Hand Wired Head to your sonic arsenal!
Beautifully hand built, using the finest components and custom parts, methods ofhigh level of skill and craftsmanship, resulting in wiring thats beautiful in its artistry, and ensuring an efficient signal path with minimal loss and no restriction in amplitude. This is classic VOX with a modern twist.
VOX believes this to be one of their most sonically versatile Hand Wired amplifiers to date, and is well on the way to joining its Grandfathers in the VOX hall of fame.
Specs
Category | Head |
Type | Tube |
Wattage | 30W |
Inputs | 2 X 1/4 (high/low Normal ch), 2X 1/4 (high/low Top Boost ch) |
Outputs | 2X 1/4 (8/16 ohms),1X 1/4 (Footswitch) |
Controls | Master Volume, Master Tone Cut, Normal Volume, Top Boost Volume, Top Boost Bass, Top Boost Treble |
Preamp Tubes | 3X ECC83 / 12AX7 |
Power Tubes | 4X EL84 (power amp), 1 X GZ34 (rectifier) |
Cabinet Construction | Birch Plywood with Textured Vinyl |
Dimensions (W x D x H) | 27.76 x 10.24 x 9.84 inches |
Weight | 18.8kg |
Included Accessories | Power cable, VFS1 footswitch, Dust cover, Speaker cable |
